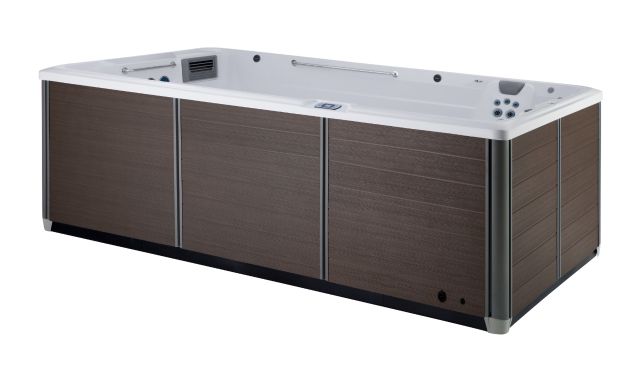

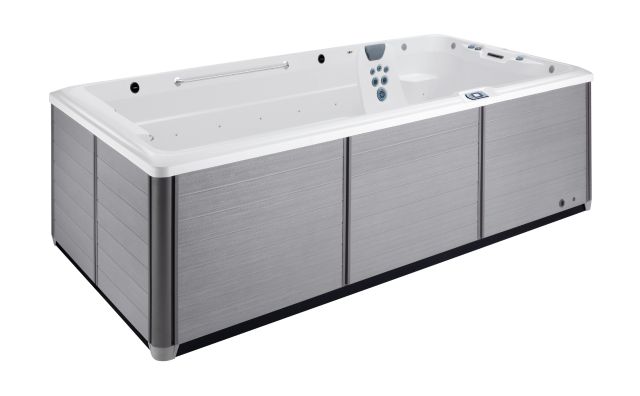

R500 RecSport® Recreation Systems

More to love.

Enjoying all the physical and non-physical benefits of water is what RecSport® Recreation Systems are all about. With our most expansive recreation space yet, the unique design of the R500 maximizes the interior space to provide a wide-open space, comfortable spa seating and a 30-inch deep reef area for kids to play. There’s more to love with the R500.

Download Brochure
Get Pricing



R500 RecSport® Recreation Systems Specs

  • R500
  • Dimensions 15′ L X 50″ H X 89″ W
    Water Capacity 1,785 Gallons
    Weight 2,055 lbs. (Dry) / 18,690 lbs. (Filled*)
    Hydromassage Jets – 27 1 Large Jet
    2 Rotary Jets
    2 Directional Jets
    22 Mini Jets
    Swim Technology 3 Swim Jets – Max 215 Gallons Per Minute
    Swim Jets Two-Speed
    2.5 HP XP3 Continuous Duty
    5.2 HP Breakdown Torque
    Lighting System 24 Multi-Color LED Points of Light, Exterior LED Lighting (Optional)
    Water Feature 1 Illuminated Waterfall
    Control System LCD Control Panel; 230v/30amp, 60 Hz, Field Adjustable 230v/60amp
    Heater 4,000 watt
    Jet Pump Two-Speed
    2.5 HP XP3 Continuous Duty
    5.2 HP Breakdown Torque
    Ozone System CD Ozone
    Effective Filtration Area 100 sq. ft.
    Substructure Wood Frame and ABS Base Pan
    Energy Efficiency EPS Foam + Reflective Film; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
    Stainless Steel Grab Rails 3 Stainless Steel Rails
    Music Option 8 Speakers + Subwoofer, Bluetooth®-Enabled
    Exercise Equipment Options Swim Tether, Resistance Bands, Aqua Bike
    Vinyl Cover & Lifter Options Watkins Covers & Lifters, VacuSeal™ Cover System, CoverCradle®/ProLift® III, Easy Slider Cover Mounts
    Additional Options Floor Mirror, Gecko® In.Touch 2 Wi-Fi & Mobile App, CoolZone™ Cooling System, Signature Steps, SwimDek® Surface Kits
